Timing Pulley
We are the prominent manufacturer and supplier of a wide range of Durable Timing Pulleys. We use superior quality steel or aluminum for manufacturing these pulleys, to ensure their high durability. Based on their advanced fabrication, these pulleys are light in weight and provided with metric and inched timing belt pitches
XL037
XL037 – Pitch 1/5″ (5.08 mm) – Belt Width 3/8″ (9.5 mm)

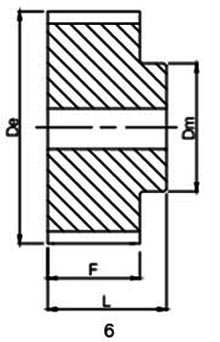

| Pulley Designation | Type | PCD (mm) | De (mm) | Df (mm) | Dm (mm) | F | L | Stock Bore | Material | Flanges |
| 10XL037 | 1F | 16.17 | 15.66 | 23.00 | – | 13.00 | 19.80 | 4.00 | Aluminium | Y |
| 11XL037 | 1F | 17.79 | 17.28 | 23.00 | – | 13.00 | 19.80 | 4.00 | Aluminium | Y |
| 12XL037 | 1F | 19.40 | 18.90 | 25.00 | – | 13.00 | 19.80 | 4.00 | Aluminium | Y |
| 14XL037 | 6F | 22.64 | 22.13 | 28.00 | 14.30 | 14.30 | 19.80 | 6.00 | Aluminium | Y |
| 15XL037 | 6F | 24.26 | 23.75 | 28.00 | 15.90 | 14.30 | 19.80 | 6.00 | Aluminium | Y |
| 16XL037 | 6F | 25.87 | 25.36 | 32.00 | 17.50 | 14.30 | 19.80 | 6.00 | Aluminium | Y |
| 18XL037 | 6F | 29.11 | 28.60 | 36.00 | 20.60 | 14.30 | 22.20 | 6.00 | Aluminium | Y |
| 20XL037 | 6F | 32.34 | 31.83 | 38.00 | 23.80 | 14.30 | 22.20 | 6.00 | Aluminium | Y |
| 21XL037 | 6F | 33.96 | 33.45 | 38.00 | 23.80 | 14.30 | 22.20 | 6.00 | Aluminium | Y |
| 22XL037 | 6F | 35.57 | 35.07 | 42.00 | 25.40 | 14.30 | 22.20 | 6.00 | Aluminium | Y |
| 24XL037 | 6F | 38.81 | 38.30 | 44.00 | 27.00 | 14.30 | 22.20 | 6.00 | Aluminium | Y |
| 26XL037 | 6F | 42.04 | 41.53 | 48.00 | 30.00 | 14.30 | 22.20 | 6.00 | Aluminium | Y |
| 28XL037 | 6F | 45.28 | 44.77 | 51.00 | 30.20 | 14.30 | 22.20 | 6.00 | Aluminium | Y |
| 30XL037 | 6F | 48.51 | 48.00 | 54.00 | 34.90 | 14.30 | 22.20 | 6.00 | Aluminium | Y |
| 32XL037 | 6 | 51.74 | 51.24 | – | 38.00 | 14.30 | 25.40 | 8.00 | Aluminium | N |
| 36XL037 | 6 | 58.21 | 57.70 | – | 38.00 | 14.30 | 25.40 | 8.00 | Aluminium | N |
| 40XL037 | 6 | 64.68 | 64.17 | – | 38.00 | 14.30 | 25.40 | 8.00 | Aluminium | N |
| 42XL037 | 6 | 67.91 | 67.41 | – | 38.00 | 14.30 | 25.40 | 8.00 | Aluminium | N |
| 44XL037 | 6 | 71.15 | 70.64 | – | 38.00 | 14.30 | 25.40 | 8.00 | Aluminium | N |
| 48XL037 | 6 | 77.62 | 77.11 | – | 38.00 | 14.30 | 25.40 | 8.00 | Aluminium | N |
| 60XL037 | 6A | 97.02 | 96.51 | – | 38.00 | 14.30 | 25.40 | 8.00 | Aluminium | N |
| 72XL037 | 6A | 116.43 | 115.92 | – | 38.00 | 14.30 | 25.40 | 8.00 | Aluminium | N |
Montana International reserves the rights to alter non-critical dimensions and specifications without prior intimation
All dimensions in mm
Please check for stock availability before placing firm orders
All pulleys are supplied without balancing
Items marked * are not stock items
